MatNet

MatNet is a neural matrix encoding network that processes bipartite graph-structured data with a dual attention mechanism to solve asymmetric combinatorial optimization problems like ATSP and FFSP through end-to-end reinforcement learning.

MatNetInitialization

Bases: ARInitialization

Methods:

• In training mode, the policy is executed to collect rewards and likelihoods.

• In evaluation mode, the policy is executed to collect rewards and calculate scores.

NoIteration

Bases: Iteration

MatNetPolicy

The MatNetPolicy class is a factory that provides the appropriate policy network for a given problem, either ATSPPolicy or FFSPPolicy. These policies follow a standard encoder-decoder architecture.

Methods:

• pre_forward(td): This method is called once before the decoding process begins. It initializes row and column embeddings (using one-hot encoding for columns) and then uses the MatNetEncoder to generate contextual embeddings for the rows and columns of the cost matrix. It then caches the key and value matrices in the decoder for efficient attention computation.

• forward(td): This method is called at each step of the decoding process. It takes the current state td, generates a query from the current context (e.g., the last selected node), and uses the decoder to compute a probability distribution over the next possible actions.

• set_decoder_strategy(strategy): Sets the decoding strategy, such as “sampling” or “greedy”.

MatNetEncoder

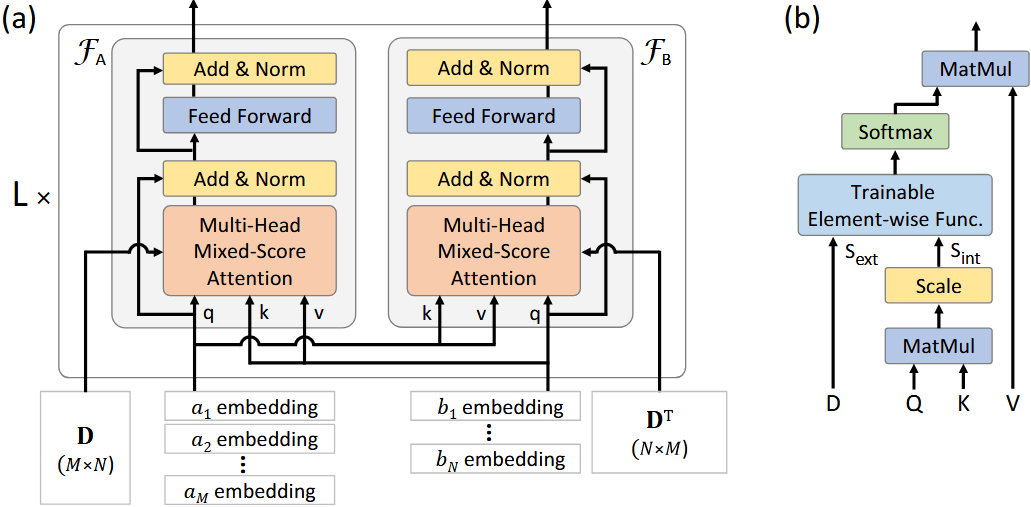

The MatNetEncoder is responsible for generating contextual embeddings for the row and column entities of the input cost matrix. It consists of multiple EncoderLayers that iteratively refine these embeddings.

• Dual Encoding Blocks: Each EncoderLayer contains two EncodingBlocks, one for updating the row embeddings and one for updating the column embeddings. This dual structure allows the model to capture the bipartite nature of the problem.

• Mixed-Score Multi-Head Attention: The core of the EncodingBlock is the MixedScore_MultiHeadAttention. This mechanism computes attention scores by combining two sources of information:

  1. The standard dot-product attention between queries and keys.

  2. The raw cost matrix values. These two scores are mixed using a small neural network, allowing the model to learn the optimal way to combine semantic similarity and cost information.

• Iterative Refinement: The embeddings are passed through a series of EncoderLayers, allowing for deep, iterative refinement of the row and column representations. Each layer’s output becomes the input for the next, enabling the model to build increasingly sophisticated contextual understanding.

MatNetDecoder

The MatNetDecoder autoregressively constructs the solution by selecting the next item at each step. It has specialized implementations for ATSP (ATSPDecoder) and FFSP (FFSPDecoder).

• Attention-Based Selection: It uses a standard multi-head attention mechanism to compute a probability distribution over all possible next items. The query is constructed from the current step’s context, and the keys and values are derived from the encoder’s output embeddings.

• Dynamic Context:

  • For ATSPDecoder, the query is a combination of the embeddings of the first and current nodes.

  • For FFSPDecoder, the query is the embedding of the current machine. It also includes a special “NO_JOB” embedding to allow machines to remain idle.

• Precomputation and Caching: To improve efficiency, the decoder precomputes and caches the key and value matrices from the encoder’s output using the set_kv method. It also caches the query component from the first node in ATSP (set_q1).

• Probability Calculation: The final probability distribution is obtained by a single-head attention mechanism over the output of the multi-head attention, followed by scaling, clipping, masking for feasibility, and a softmax operation.

Usage

You can run the following command lines to execute the code.

python train.py/eval.py settings=matnet_settings mode={train/test} problem={atsp/ffsp} scale={problem size} decoder_strategy={sampling/greedy} settings.model.num_encoder_layers={5/3} settings.env.pomo_size=24

Tasks

Supported Tasks: ATSP, FFSP.

Required Data Generator:

• ATSPGenerator

• FFSPGenerator
